17.45

Max. Lifting Capacity: 4500kg
Max. Height: 16,4mt
Max. Total Unladen Weight: 12250kg

Features
Specs
Options
Configuration
Diagram
Video
Warranty

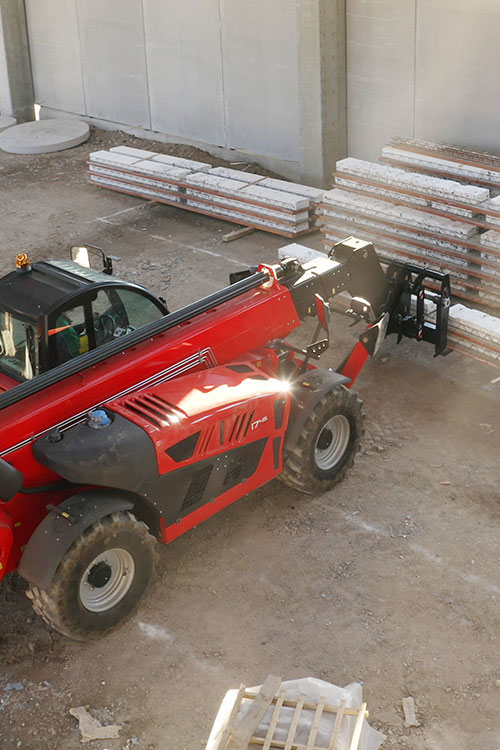

The Big Range series was designed especially for the construction sector. The structure of the boom built in two or three sections is designed to ensure maximum functionality even in routine maintenance operations. Thanks the use of front outriggers and side levelling, the machine is the ideal choice for all material handling operations in construction site areas.

Features

Queen Cab: comfort, visibility and ergonomics
Stage 3A tier 3 engines
Gear pump – 120 l/min@230 bar
Load sensing pump – 152l / min optional (standard on HLS)
When you want to reach the top without compromises
Chassis with levelling system and front outriggers

Height (mm)	2500
Width (mm)	2360
Gauge (mm)	1832
Ground Clearance (mm)	–
Front Overhang (mm)	2300
Pitch (mm)	2950
Rear Overhang (mm)	1305
Length with Towing Hook (mm)	6555
Maximum Total Unladen Weight (kg)	12250
Number of Extracting Sections	3
Maximum Capacity (kg)	4500
Maximum Lifting Height (mt)	16,4
Maximum Horizontal Boom Extension (mt)	12,6
Boom Extension at Max Height (mt)	2,5
Forks Swinging Angle (°)	144
Hydraulic Oil Tank (l)	150
Diesel Oil Tank (l)	120
Connection For Equipment	FH

Options

Tyres & Wheels
Engine
Hydraulics
Light & Headlamps
Mirrors
Brakes, Axles & Suspension
Boom
Cab
Tow
Chassis

Configuration

CLASSIC 55	CLASSIC 74	HLS
Engine (kW/hp)
Deutz Stage IIIB 55,4/75,3	Deutz Stage IV 74,4/101	Deutz Stage IV 74,4/101
Transmission
Hydrostatic		Hydrostatic with optional mechanical gearbox
Service pump(l/min)
Gears 120@230 bar	Gears 120@230 bar	Load Sensing 152@250 bar
Traction power(kg)
5000	5000	6500
Shovel mode
standard	standard	standard

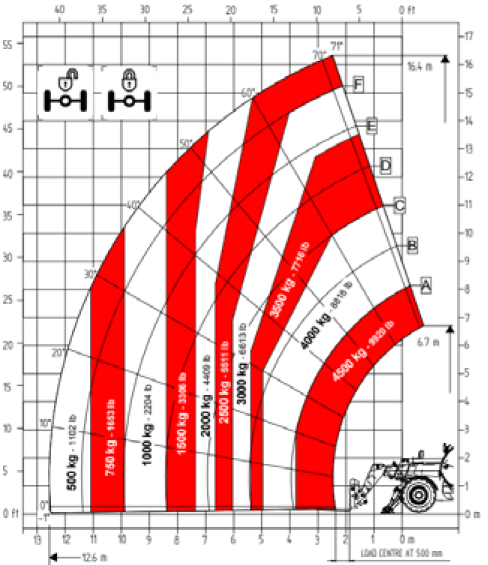

Diagram

Video

Warranty

2 years full / 200hrs and 5 year structural.

Specifications subject to change without notice. Photos and diagrams on this website are for promotional purposes only. Refer to appropriate operators manual for detailed instructions on the proper use and maintenance.
