660SJ All Terrain

Max. Working Height: 22.1m
Max. horizontal reach: 17.8m
Platform Capacity: 272kg
Weight: 13,750kg

Download Dual Envelope Lifting Capacities (PDF)

Add to quote list

Features
Specs
Options
Working Envelope
Warranty

The Snorkel 660SJ All Terrain telescopic boom lift offers enhanced traction. Turf-friendly independent rubber tracks can traverse uneven terrain without sinking into loose sediment, soft soil, sand, snow and mud. Designed with full-time active oscillating axle, the 660SJ All Terrain delivers smooth performance and low ground pressure on sensitive environments.

Standard Features

Snorkel Guard™ secondary guarding system
1.67m 135º jib
Oscillating axle (203mm of oscillation)
Hydraulic platform rotation
Hydraulic oil cooler
4-track drive
All proportional controls
Swing-out engine tray
Motion alarm
Horn
Hour meter & on-board diagnostics display
Power line to platform
5º tilt alarm & cut out
Hour meter & on-board diagnostics display
DC emergency operation
Tri-entry platform
Flashing amber light
Platform overload system
2 year parts & labor, 5 year structural warranty

Max Working Height	22.1m
Max. Platform Height	20.1m
Max Horizontal Outreach	17.8m
Platform Size	2.44m x 0.91m
Overall Width	2.46m
Transport width	2.24m
Transport Length	8.3m
Overall Length	10.1m
Transport Height	3.0m
Stowed Height	2.61m
Ground Clearance	444m
Platform capacity - unrestricted	272kg
Platform capacity - restricted	454kg
Max Drive Height	20.1m
Max. Wind Speed	12.5m/s
Max Drive Speed (stowed)	5.6km/h
Max Drive Speed (elevated)	0.96km/h
Jib Length	1.67m
Jib Arc	135° (+70°/-65°)
Platform Rotation	150°
Superstructure Rotation (continuous)	360°
Tailswing	1.2m
Raise/Lower Time	50 / 50 sec
Gradeability	45%
Inside Turning Radius	5.94m
Outside Turning Radius	8.38m
Tyres	Independent rubber tracks
Controls	Proportional drive, raise, slew, extend, jib & platform rotate
Drive System	4 track drive
Power Source	Deutz 2.9L 55kW/74hp – Stage V
Auxillary Power Unit	12V DC
Weight	13,750kg

Options

Special paint colors
Airline to platform
AC generator 110V/220V 2kW
Aircraft package
Deluxe aircraft package
Cold weather package
Extreme cold weather package
Extreme environment package
Glazier package
Light package
10kW generator package
10kW generator/welder package
Environmental hydraulic oil
Tool tray
Pipe rack
Snorkel OnSite™ telematics

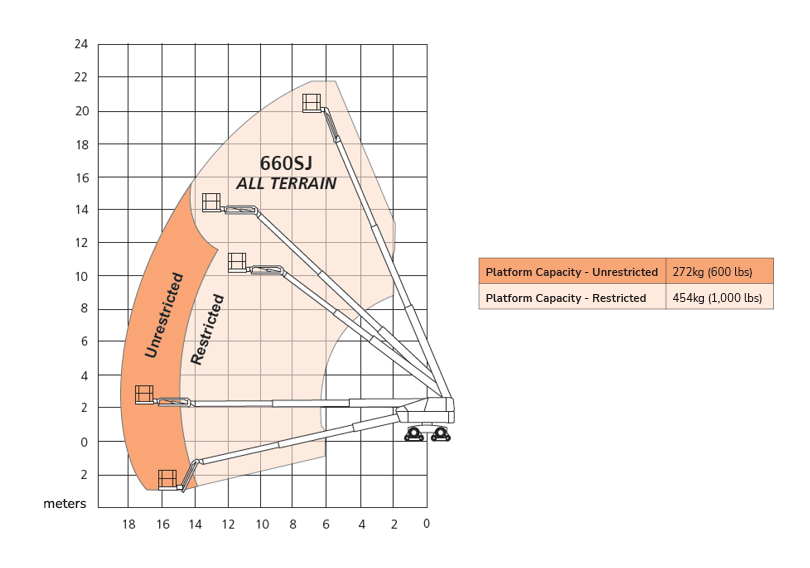

Working Envelope

Warranty

All Snorkel telescopic boom lifts are built to the highest standards and we carry out rigorous quality checks at every stage of production. To ensure our customers have peace of mind in purchasing Snorkel products, all Snorkel machines come with a five-year structural warranty, plus a two-year warranty for parts and labour. Ahern Australia is authorized to carry our Snorkel warranty repairs. For further details, please visit our Warranty page.

Specifications subject to change without notice. Photos and diagrams on this website are for promotional purposes only. Refer to appropriate operators manual for detailed instructions on the proper use and maintenance.
