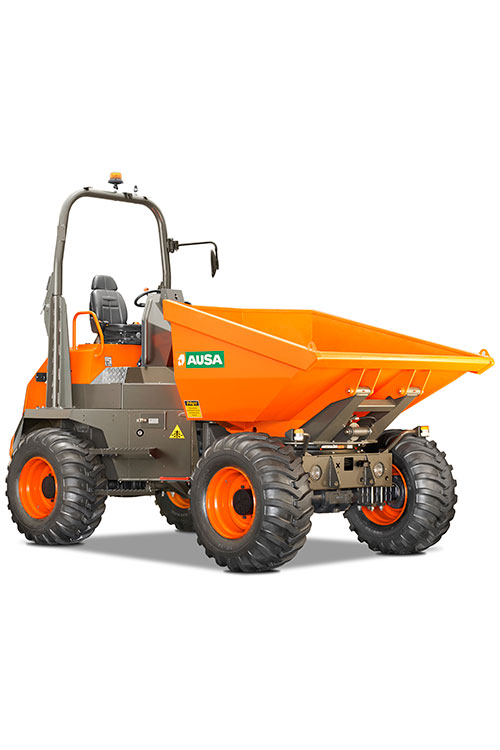

D1001APG

  • Unloading system: Rotating
  • Load capacity: 10000 Kg
  • Transmission: Torque converter

Cost-effective, safe and high-tech. It is equipped with a 180-degree swing skip and it has a 10-tonne (22,000 lb) payload, making it AUSA’s articulated dumper with the highest payload. Its transmission with a converter ensures the fast delivery of power and speed.

The D1001APG dumper is very easy to maintain because the arrangement of all of the components has been designed to keep the unit’s downtime to a minimum. It can optionally be equipped with Smart Stop, which turns off the engine when it is not in use. This will significantly reduce fuel consumption, maintaining low CO2 emissions.

Additionally, a digital display is built into the driver’s console, where you will find all of the real-time information about the machine, such as the speed, RPM, fluid levels and alarms.

Unloading system

Rotating

Load capacity

10000 Kg

Chassis

Articulated

Water skip capacity

1850 l

Level skip capacity

3300 l

Heaped skip capacity

3900 l

Empty weight

5153 Kg

Transmission

Torque converter

Reversibility

Non-reversible

Brand

Deutz

Model

TCD 3.6 L4 HT

Power

55.4 kW

Torque

390@1300

No. of cylinders

4

Emissions

Stage IIIB – EPA Tier 4F

Noise level

100.6 dB(A)

Max. speed

25 Km/h

Maximum gradient

45 %

External turning radius

6287 mm

Traction

4×4

Tyres

500/60-22.5

Flow rate

46 l/min

Working pressure

180 bar

Fuel

69 l

Hydraulic system

60 l

Service

Hydraulic, sealed, multi-disc

Parking

Negative

Specifications subject to change without notice. Photos and diagrams on this website are for promotional purposes only. Refer to appropriate operators manual for detailed instructions on the proper use and maintenance.
