DR601AHG

  • Unloading system: Rotating
  • Load capacity: 6000 Kg
  • Transmission: Hydrostatic

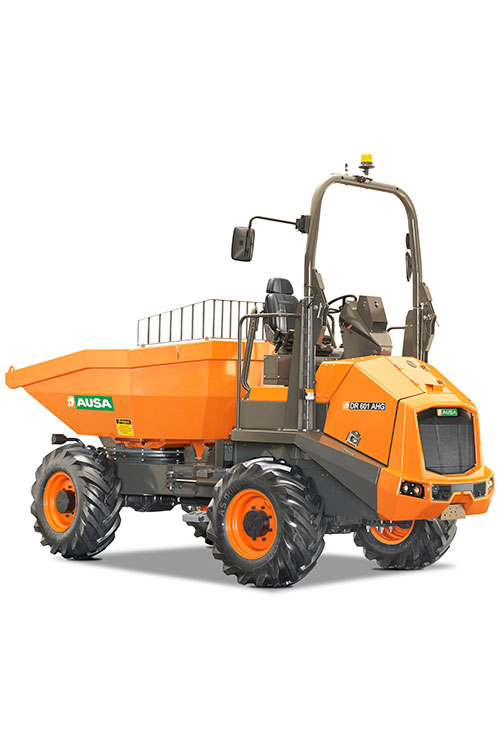

The DR601AHG reversible dumper has a 6,000 kg (13,200 lb) payload and comfortable hydrostatic transmission. Thanks to the innovative reversible design, the seat can rotate 180 degrees and all components are instantly adjusted to suit the driver’s new position: steering wheel, joystick, pedals, safety cameras, etc. The driver can also comfortably and safely get on and off both sides of the dumper, so speed and flexibility are significantly increased.

In terms of technology, various systems have been included to make it a more efficient dumper: it has the ECO Mode function, where the engine speed is automatically controlled to ensure lower fuel consumption and CO2 emissions.

It is fitted with the Hill Holder system, a start-assist and safety system that engages the dumper’s brake when you take your foot off the accelerator at zero speed. This significantly increases safety, especially when operating on slopes.

It can also be equipped with Smart Stop: a plug-in system that automatically shuts down the engine when it is not in use and the optimal time and safety requirements are met.

Unloading system

Rotating

Load capacity

6000 Kg

Chassis

Articulated

Water skip capacity

1665 l

Level skip capacity

2455 l

Heaped skip capacity

3154 l

Empty weight

4840 Kg

Transmission

Hydrostatic

Reversibility

Reversible

Brand

Deutz

Model

TD3.6 L4

Power

55.4 kW

Torque

330@1600

No. of cylinders

4

Emissions

Stage IIIB – EPA Tier 4F

Noise level

101 dB(A)

Max. speed

25 Km/h

Maximum gradient

45 %

External turning radius

5900 mm

Traction

4×4

Tyres

405/70-20

Flow rate

50 l/min

Working pressure

180 bar

Fuel

69 l

Hydraulic system

60 l

Service

Hydraulic, sealed, multi-disc

Parking

Negative

Specifications subject to change without notice. Photos and diagrams on this website are for promotional purposes only. Refer to appropriate operators manual for detailed instructions on the proper use and maintenance.
