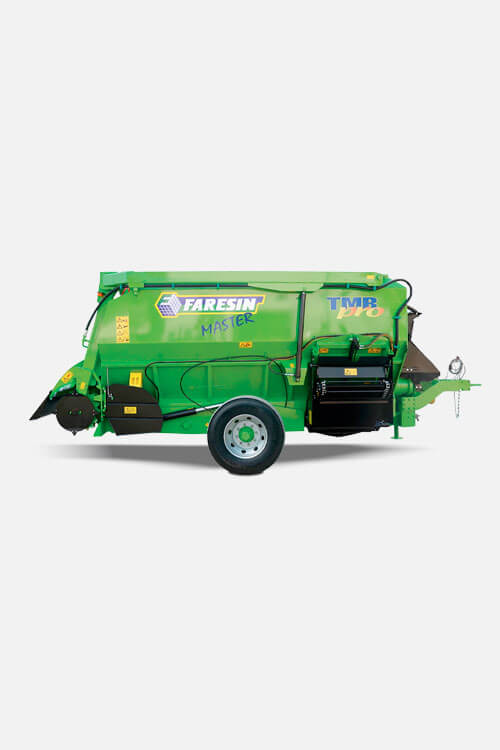

Suitable for small and medium-sized companies that require an autonomous system also for the product loading phase. The rear cutter can be mounted on the Master to load any product without the need for specific equipment. Horizontal mixing allows compact dimensions and rapid shredding of the components.
| 850 | 1050 | 1200 | 1400 | 1700 | ||
|---|---|---|---|---|---|---|
| Capacity | 8,5 | 10,5 | 12 | 14 | 17 | m3 |
| Empty Weight | 5780 | 6580 | 6620 | 7100 | 7300 | kg |
| Maximum Loading Capacity | 3400 | 4200 | 4800 | 5600 | 6800 | kg |
| Pto | 45/61 | 51/70 | 59/80 | 66/90 | 74/100 | Kw/hp |
| Power | 6150 | 6900 | 6850 | 7550 | 7550 | mm |

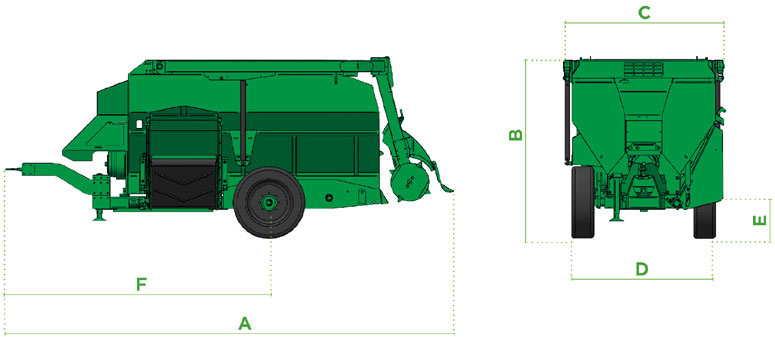

| (A) Length | 2500 | 2520 | 2750 | 2750 | 2900 | mm |
| (B) Height | 2280 | 2300 | 2300 | 2300 | 2460 | mm |
| (C) Width | 2020 | 2020 | 2020 | 2285 | 2300 | mm |
| (D) Roller Width | 500 | 500 | 500 | 650 | 650 | mm |
| (E) Discharge Height | 3680 | 3910 | 3910 | 4570 | 4570 | mm |
| UBA max* | 45/65 | 55/80 | 65/95 | 75/110 | 90/135 | from/to |
