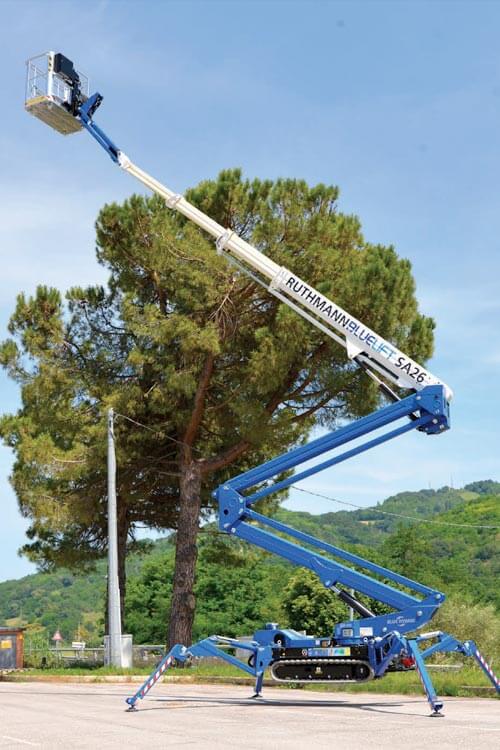

SA26

• Quickly removable aluminum basket
• Basket rotation
• i-Performing electric pump (patented) with auto Start/Stop system
• 230V power outlet in basket
• Radio remote control with interactive and multi-lingual display
• Track width adjusting system with indipendent axle
• Multi-area stabilizer setting (3 different set-up positions)
• Moment limiting device
• Automatic center position of turret
• Self Stabilizing system
• Automatic START & STOP of engines and RPM control
• Proportional and simultaneous electro-hydraulic controls
• Proportional track drive with hydraulic breaking system
• Double drive speed system with safety control
• Driving lateral slope alarm with safety stop
• Driving possible with jib boom raised (with selector)
• Interblock outriggers/booms
• Emergency push-button with engine stop
• Simple emergency lowering procedure
• Hand pump for the emergency lowering of platform
• Covers on outrigger cylinder’s piston rod, oil tank and emergency controls
• Modem connection plug for diagnosis/software upgrading in remote
• Produced according to EN280 norm and international safety regulation

Max Working Height	26 m
Max Horizontal Outreach	10.90 m/250 kg, 11.7 m/200 kg, 13.7 m/120 kg, 14.5 m/80 kg
Basket Capacity	250 kg
Basket Dimension	1.3m x 0.7m x 1.1m
Turret Rotation	340°
Overall Weight	3350 kg
Travel Speed	1.5 km/h
Max Gradeability	28%
Combustion Engine	Honda iGX
Electric Motor	230V – 2.2 kW

Options

• Air/Water tube
• Diesel engine HATZ 1B50 with automatic RPM control and
  Automatic START & STOP
• 110V power
• Blue Hybrid pack*
• Asymmetric stability area
• No-marking crawlers
• Go-Home function
• Custom paint work

* This option increase the overall weight of platform

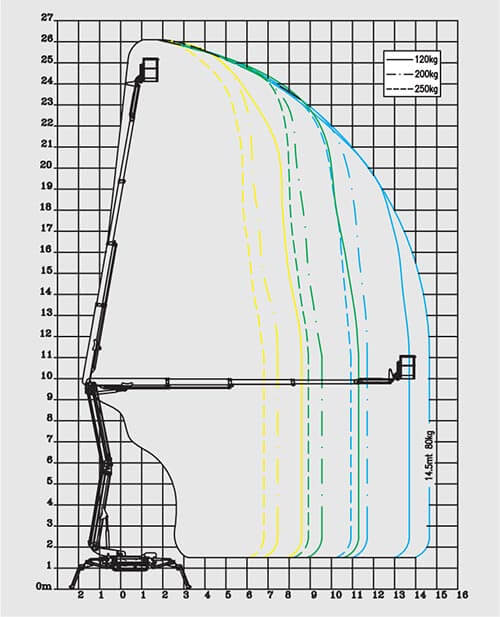

Working Envelope

All Bluelift products are sold with a one year warranty on parts and labour and two years warranty on the electronics card.

For more information, contact your sales representative.
